Architecture at a Glance

Three pictures explain Lunaris. If you only have ninety seconds, read the captions; the full architecture page carries the crate-level detail and the proof links.

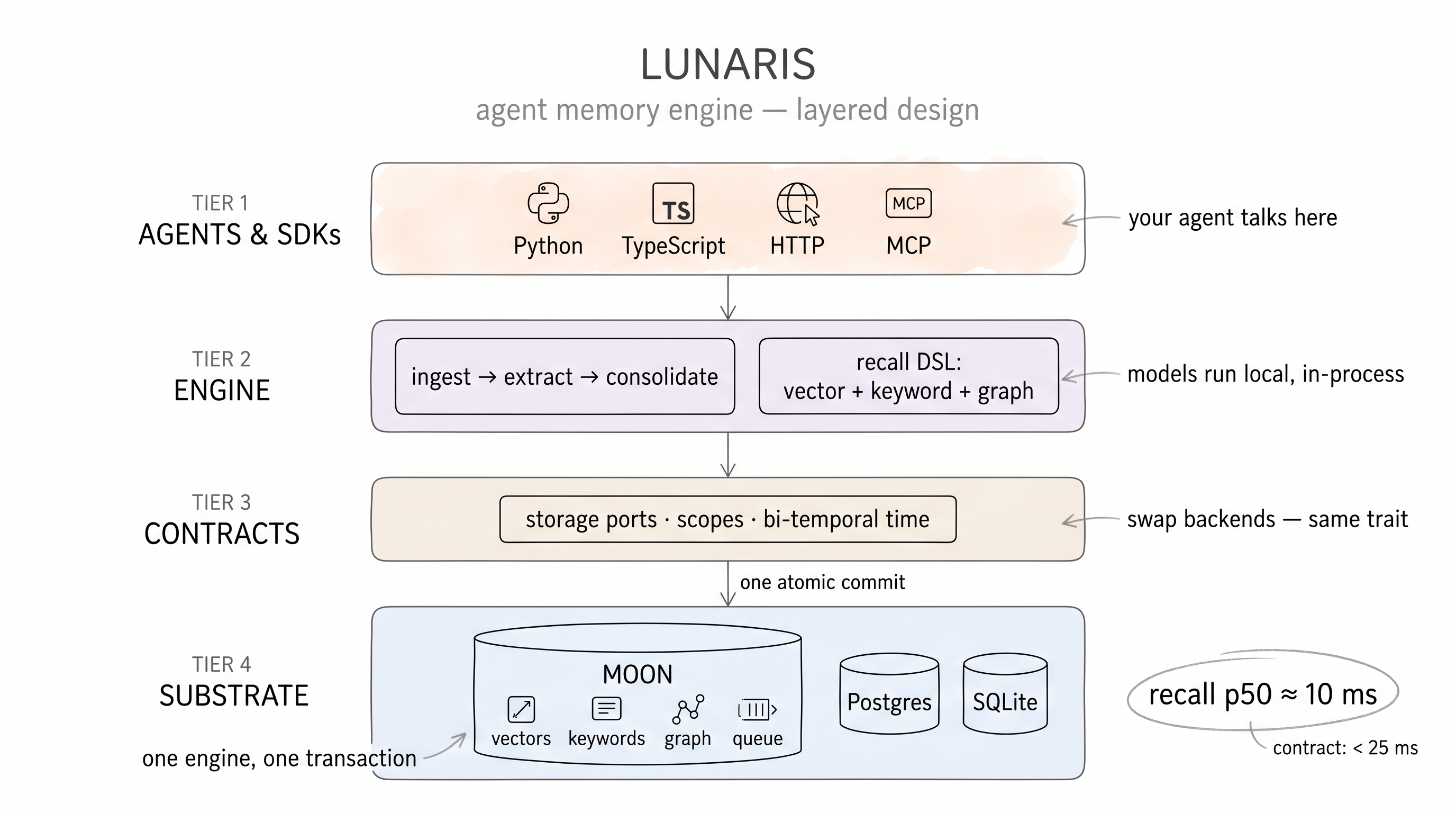

1. The layers

Lunaris is a pure-Rust engine with thin SDK shells. Your agent talks to the surface layer (Python, TypeScript, HTTP, or MCP). The engine turns observations into structured memory and queries into fused result sets. Everything below the engine is a port — a Rust trait — with one implementation behind it:

• Moon — our Redis-compatible substrate, and since 0.7.0 the only backend. The Postgres portability proof and the SQLite onboarding backend were removed; the port stays a trait, so a third-party substrate is still an open extension point.

You never write Moon commands or SQL. You write one typed expression (see The Retrieval DSL for the full operator set):

async fn demo() -> Result<(), lunaris::LunarisError> {
use lunaris::{Keyword, Lunaris, Query, Scope, Vector};

let lunaris = Lunaris::open("moon://localhost:6380").await?;
let scoped  = lunaris.scoped(Scope::new("acme.agent-1")?);
let last_tuesday = lunaris_core::Hlc::from_parts(1_736_467_200_000, 0, 0);

// Hybrid recall: vector + BM25 fused server-side, with a time-travel cut.
let hits = scoped
    .dsl()
    .with_root(Vector::new("chunks", 30).and(Keyword::bm25("chunks", 30)).fuse_rrf(60).top(5))
    .as_of(last_tuesday)
    .execute(Query::text("what did we decide about the pricing page?"))
    .await?;
Ok(())
}

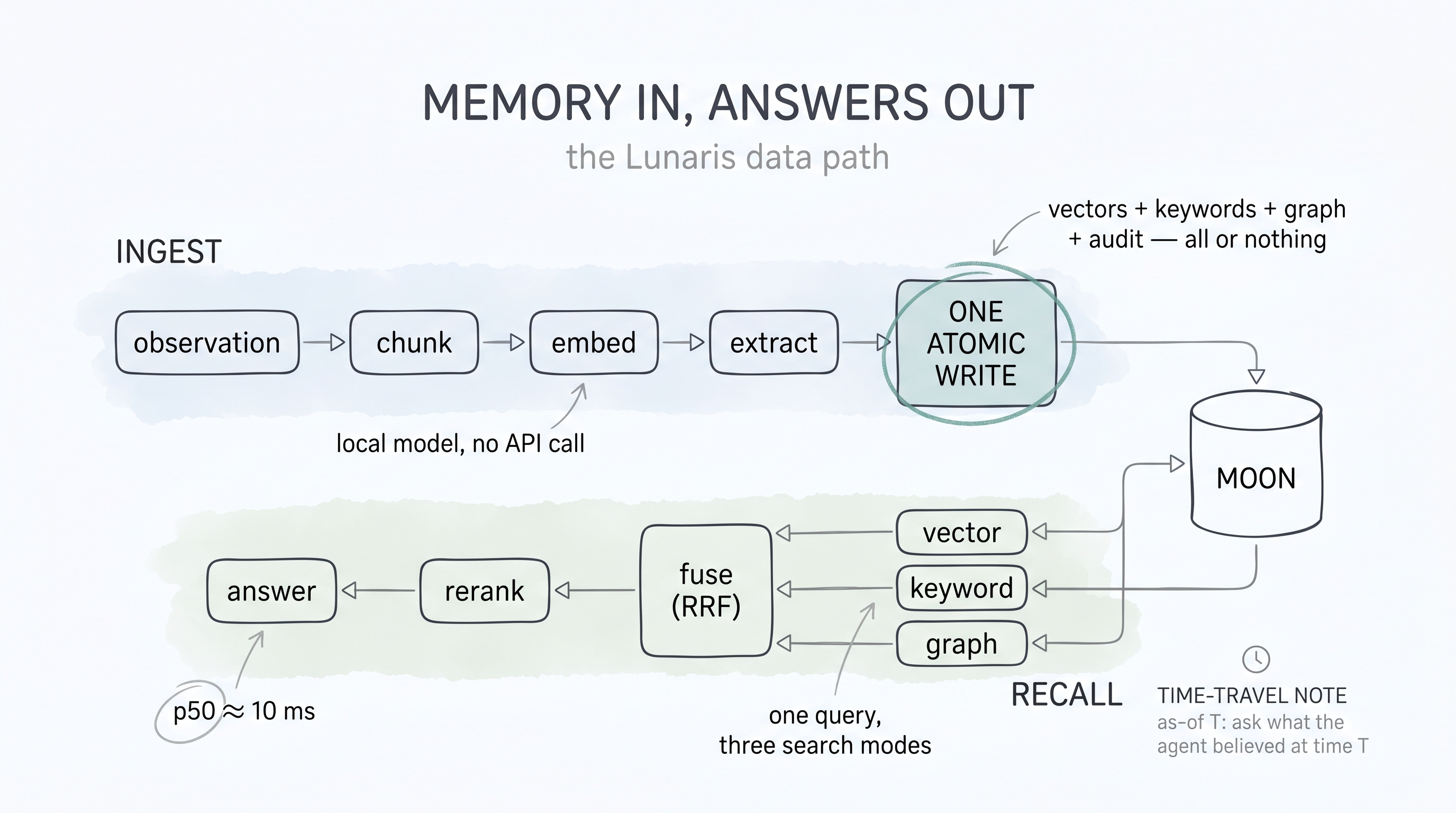

2. The data path

Ingest flows left to right: observation → chunking → local embedding (no API key, no network — models run in-process on CPU) → optional entity/fact extraction → one atomic commit. That last box is the heart of the system: vectors, keywords, graph edges, audit trail, and the consolidation queue land in a single transaction. Either your agent’s memory is complete, or the write didn’t happen. There is no “the vector store has it but the graph doesn’t” state — the failure mode every fan-out memory stack eventually hits.

Recall flows right to left: your query fans out across semantic, keyword, and graph lanes inside the substrate, gets fused by reciprocal-rank fusion, optionally reranked by a cross-encoder, and returns in p50 19.2–22.4 ms · p95 22.3–24.1 ms · p99 23.4–24.4 ms against the target corpus of 100,000 documents per scope — engine-side (query embedding excluded), graph OFF, rerank OFF, k=30, single-shard Moon v0.8.5 on an Apple M4 Pro, 500 timed queries after 50 warmup, run-to-run p50 drift ± 3 ms (envelope + method, raw samples). The published contract is p50 < 25 ms, so the headroom is ≤ 25 %. Since the 2026-06-10 concurrent-hydration fan-out the tail is flat even at k=30 — p50 6.0 ms / p99 6.2 ms (A/B methodology). The contract was re-validated on Moon v0.3.0 with the 4-bit GGUF granite embedder — retrieval-only p50 3.1 ms / p99 3.6 ms on a 3k-doc SQuAD corpus (v0.3.0 rerun, which also sizes the Navigate operator’s recall edge on graph-linked corpora: plain 0.00 → nav 1.00 recall@5 for +0.05 ms).

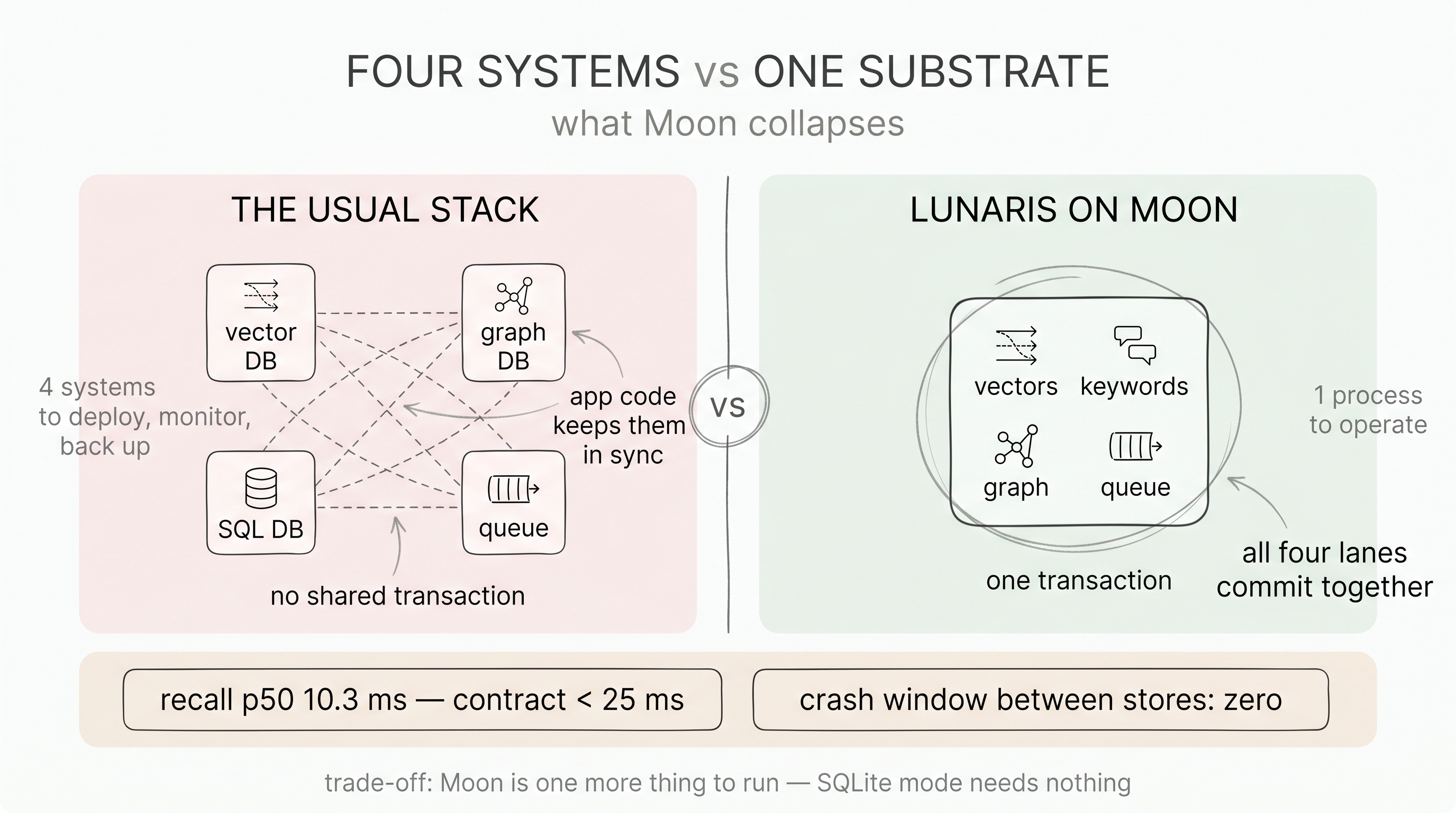

3. Why Moon makes this possible

The conventional agent-memory stack is three databases and a broker: a vector DB for similarity, a graph DB for relationships, a relational DB for records, and a queue for background work. Four systems, four failure domains, four consistency boundaries — and no transaction that spans them.

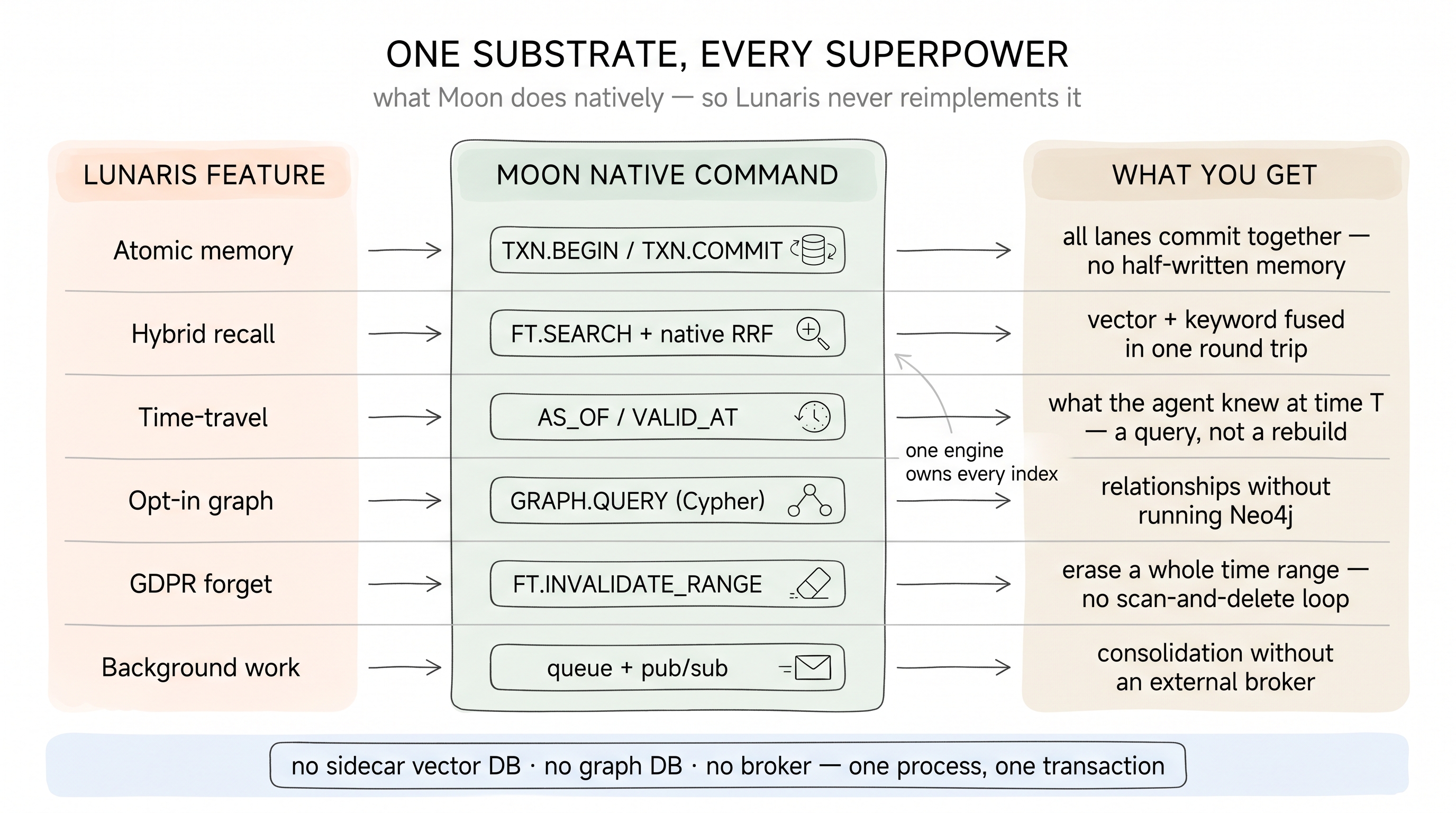

Moon collapses the stack into one process. The payoff isn’t abstract — it shows up feature by feature. Each Lunaris capability you actually use maps onto something Moon does natively, so the engine never reimplements a vector index, a BM25 scorer, a graph engine, or a transaction log on top of a dumb key-value store:

The same story as a lookup table — the command family behind each row:

One substrate, one transaction boundary, one operational surface. That is the design bet — and the measured sub-25 ms recall is what the bet pays out.

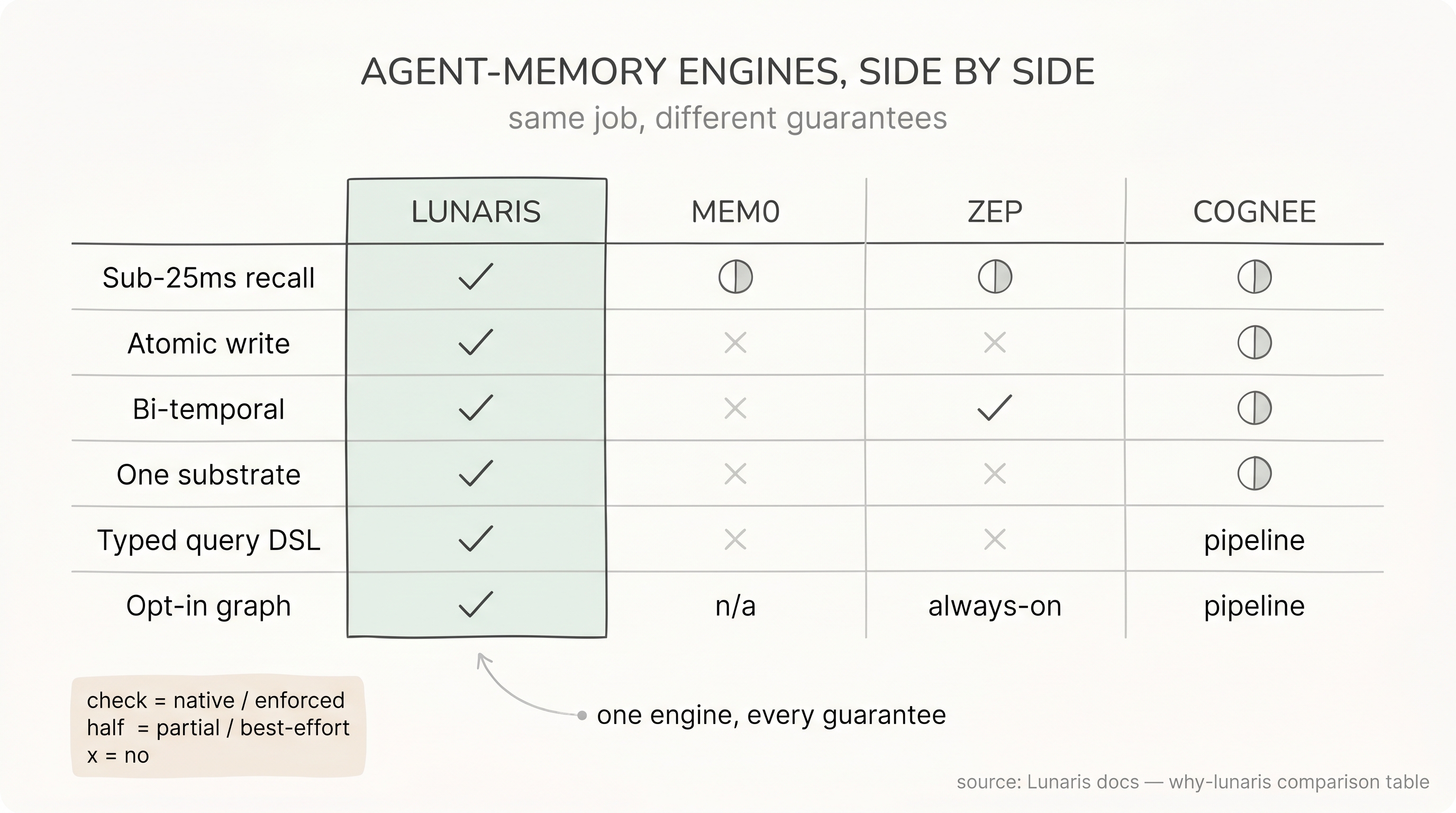

How that lands against other tools

Most agent-memory engines do the same job; what differs is the guarantees. Because Lunaris pushes vectors, keywords, the graph, the queue, and a transaction boundary into a single substrate, several rows below are a ✓ for Lunaris where the fan-out tools can only manage a partial or an ✗:

Every cell above is taken straight from the full comparison table in Why Lunaris, which carries the nuance each mark compresses — plus the honest “use a different tool when…” criteria. The short version: Lunaris trades a hosted-SaaS option and Python-native simplicity for a latency contract and an atomicity guarantee the fan-out tools structurally can’t make.

Honest footnote: plain key-value point reads on Moon are not natively temporal (the engine applies the temporal cut itself), and index schemas are fixed at creation. The architecture page lists every limit next to every advantage.

Where next

• 10-Minute Quickstart — first recall against a local Moon
• Core Concepts — episodes, primitives, scopes, bi-temporal time
• The Retrieval DSL — composing vector / keyword / graph queries
• The Storage Backend — Moon setup and its honest limits
