Design Advantages

Moon is built on one architectural bet: AI workloads — and the agents that drive them — need KV, vectors, graphs, and full-text in the same process — not four databases stitched together with sync pipelines. Every section below maps to real code in the repository, with the honest trade-offs stated alongside the wins.

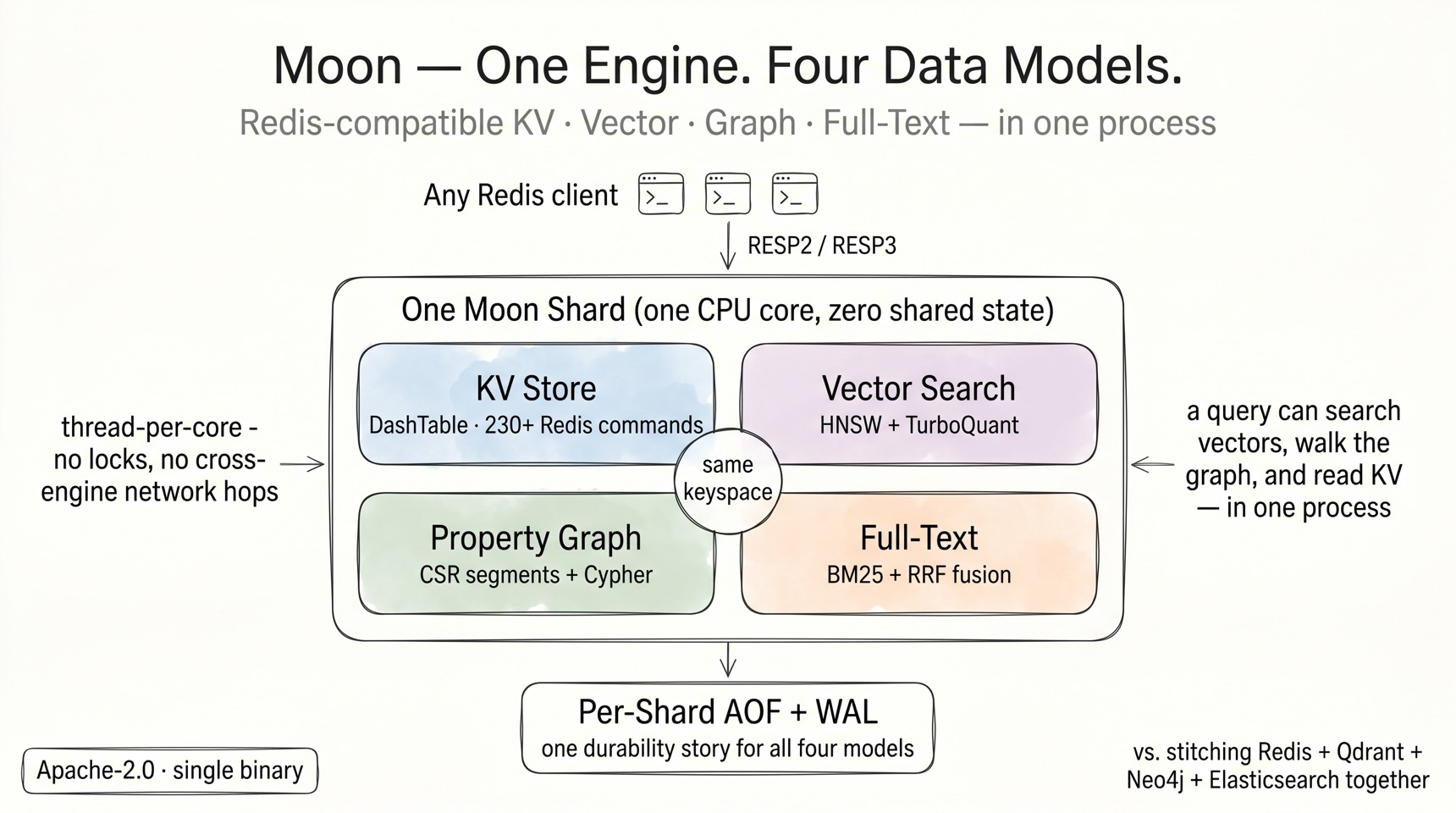

Why one engine for KV + vector + graph + text

The standard AI stack is Redis (cache) + Qdrant (vectors) + Neo4j (graph) + Elasticsearch (text), glued together with ETL jobs that drift, double-write bugs, and four operational surfaces. Moon collapses that into one binary because all four engines share the same foundation:

• One ownership model. Each shard thread owns its Database, VectorStore, GraphStore, and TextStore outright — no Arc, no Mutex, no cross-engine locks. The vector store docs say it plainly: "No Arc, no Mutex — fully owned by shard thread." The text store "mirrors the VectorStore pattern." Adding an engine doesn't add contention; it adds a field on the shard.
• One keyspace. Vectors and text fields live inside ordinary Redis hashes. Graph nodes reference the same keys. There is no "sync the vector DB with the cache" problem because there is nothing to sync.
• One durability story. Every engine writes through the same per-shard WAL/AOF machinery with the same LSN spine, so crash recovery, point-in-time queries, and cross-store transactions compose instead of conflicting.
• One wire protocol. RESP2/RESP3 — any Redis client gains vector search, Cypher, and BM25 without a new driver.

The differentiator is not parity with any single specialist database. It's the queries that only work when the engines are roommates: search vectors, walk the graph for context, check the semantic cache, and read source-of-truth KV — in one process, one round-trip.

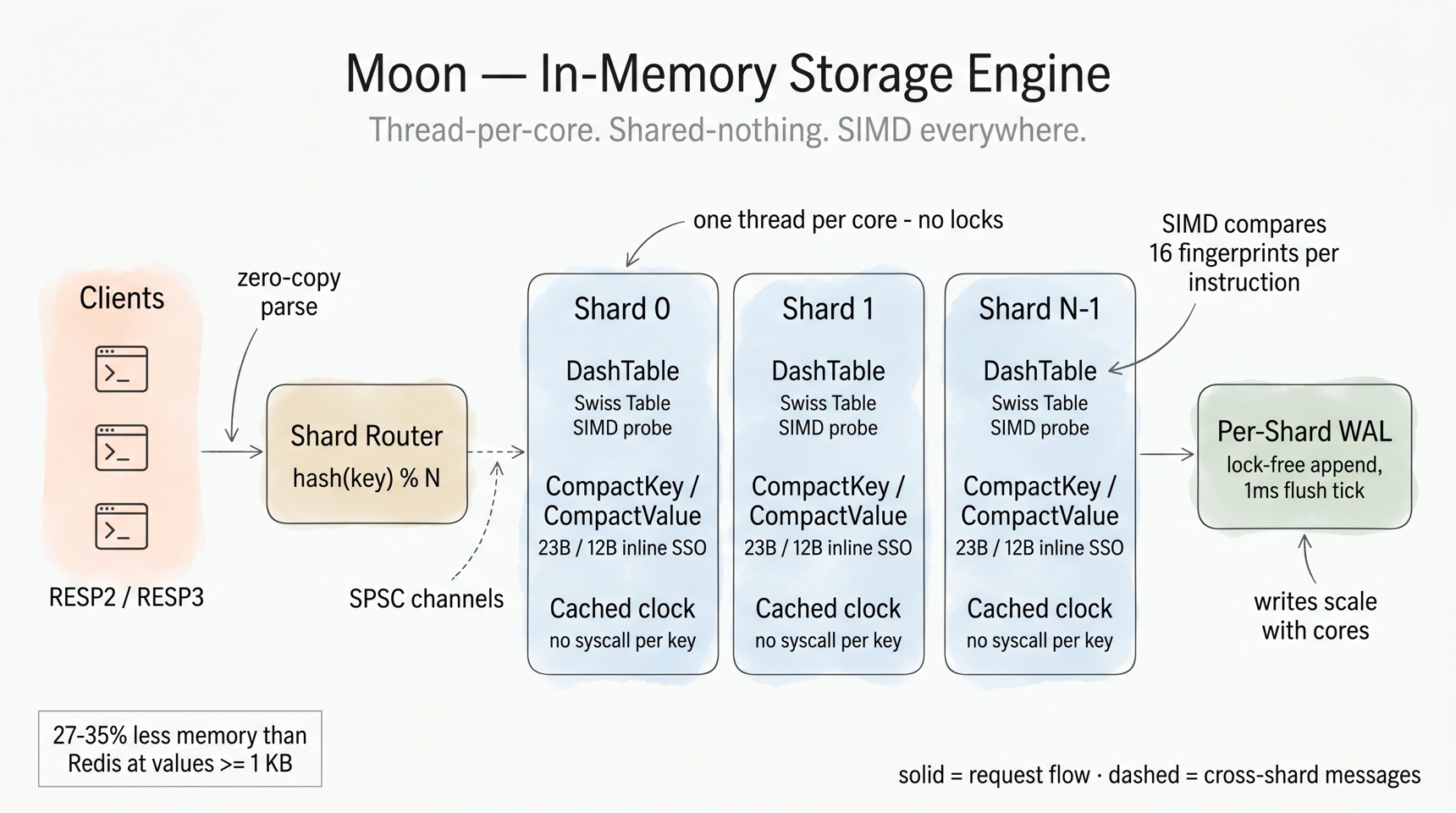

In-memory storage: thread-per-core, SIMD everywhere

Moon's hot path is engineered around three rules: never take a global lock, never copy what you can borrow, and never make a syscall per key.

DashTable — Swiss Table SIMD inside Dragonfly's macro-layout. The core hash table combines Dragonfly's directory → segments → buckets architecture with hashbrown's Swiss Table micro-optimization. Each segment packs 64 control bytes plus 60 key/value slots; a lookup computes H1 (segment + bucket selection) and H2 (a 7-bit fingerprint), then compares 16 fingerprints per instruction — SSE2 on x86_64, NEON on aarch64, with a scalar fallback. Incremental segment-split growth means no stop-the-world rehash.

Compact keys and values. CompactKey stores keys up to 23 bytes inline (no heap allocation); CompactValue is a 16-byte representation that keeps strings ≤ 12 bytes inline and uses tagged pointers for collections. Small collections use dense encodings — listpack, intset, B+ trees for sorted sets — just like Redis, but with Rust's layout control. Net effect, measured: 27–35% less resident memory than Redis at values ≥ 1 KB (below ~64 B, Redis/Valkey small-string encodings are tighter — stated in the README benchmarks too).

No hidden costs per operation. Protocol parsing is zero-copy (Bytes slices off the read buffer), expiry checks read a shard-cached timestamp instead of calling Instant::now() per key, and cross-shard dispatch rides lock-free flume SPSC channels. Responses serialize directly into the connection's codec buffer.

Tiered disk offload. Under maxmemory pressure, cold keys spill to NVMe with async writes and transparent read-through, instead of being evicted outright — with crash recovery across both tiers. Under skewed load, a hot shard borrows idle siblings' unused memory headroom (elastic per-shard budgets), so one busy tenant uses the memory you actually configured instead of 1/N of it.

Honest scaling note

A single shard already delivers peak non-pipelined throughput. Multi-shard pays off for pipelined (depth ≥ 16) and AOF-heavy workloads, with clients ≥ 25× shards, and {tag} hash-tag co-location for multi-key operations. This is documented operator guidance, not small print.

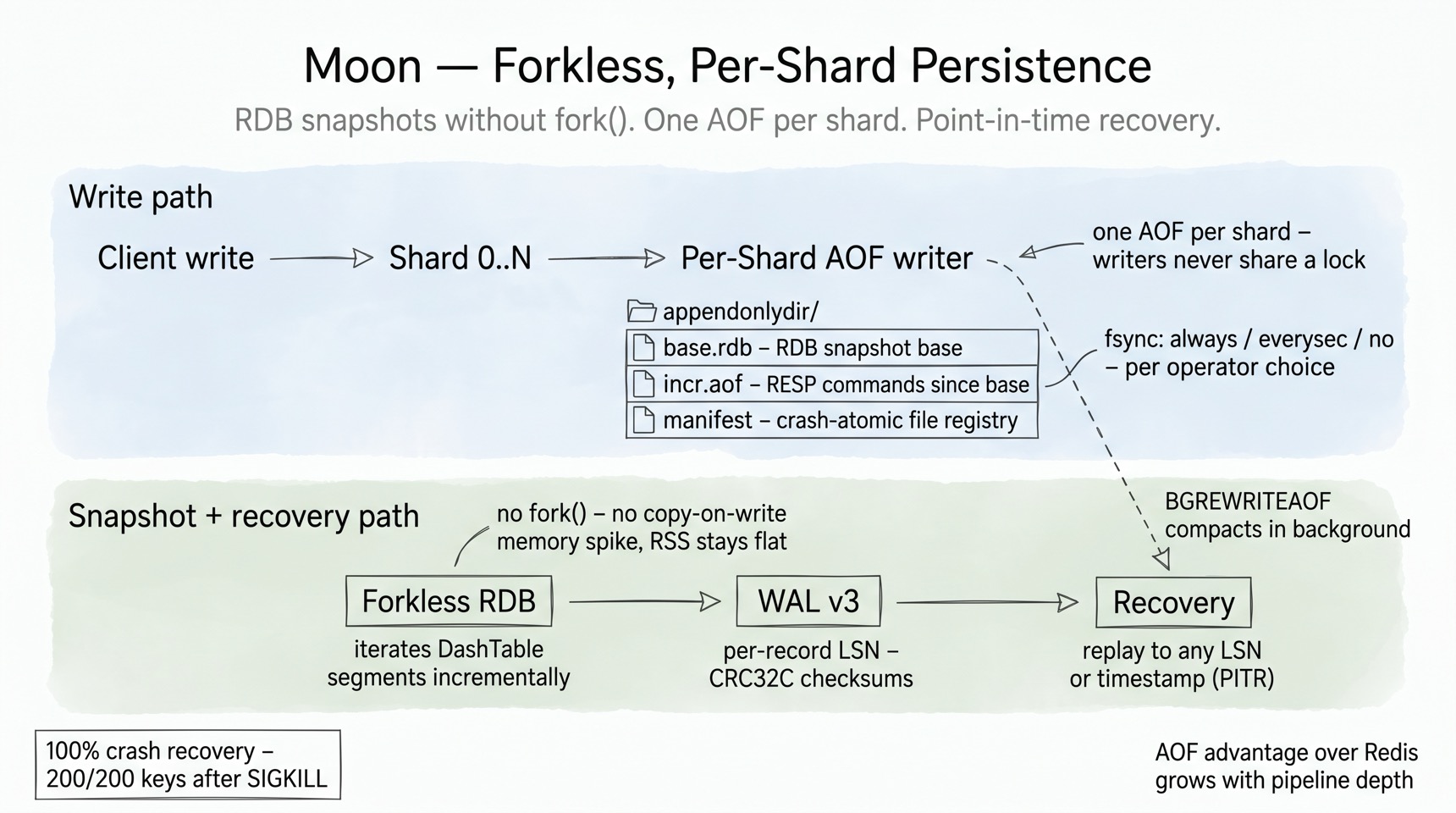

Persistence: forkless snapshots, per-shard AOF, time travel

Redis persistence has two famous pain points: fork()-based snapshots that spike memory via copy-on-write, and a single AOF that serializes all writes through one file. Moon removes both.

Forkless RDB. Snapshots iterate DashTable segments incrementally inside the shard's own event loop — no fork(), no COW page explosion, RSS stays flat while the snapshot streams out.

Per-shard AOF (multi-part). Every shard appends to its own AOF — writers never share a lock, so AOF throughput scales with shards instead of bottlenecking on one file. On disk, each AOF is a multi-part directory in the same spirit as Redis 7: an RDB base snapshot, an incremental RESP tail, and a crash-atomic manifest that registers both (every rename is followed by a directory fsync, so a power cut can't lose the new file name). Background BGREWRITEAOF compacts the incremental tail per shard. Three fsync policies (always / everysec / no) and the documented behavior that Moon's AOF advantage over Redis grows with pipeline depth — the per-shard design removes the global serialization point.

WAL v3 and point-in-time recovery. Beneath the AOF surface, Moon's WAL v3 records carry per-record LSNs and CRC32C checksums in segmented files, with replay to any LSN or timestamp — the same LSN spine that powers FT.SEARCH AS_OF and GRAPH.QUERY VALID_AT temporal queries.

Verified recovery. The crash-matrix test suite SIGKILLs a live server mid-write and requires byte-perfect recovery — 200/200 keys, on both runtimes.

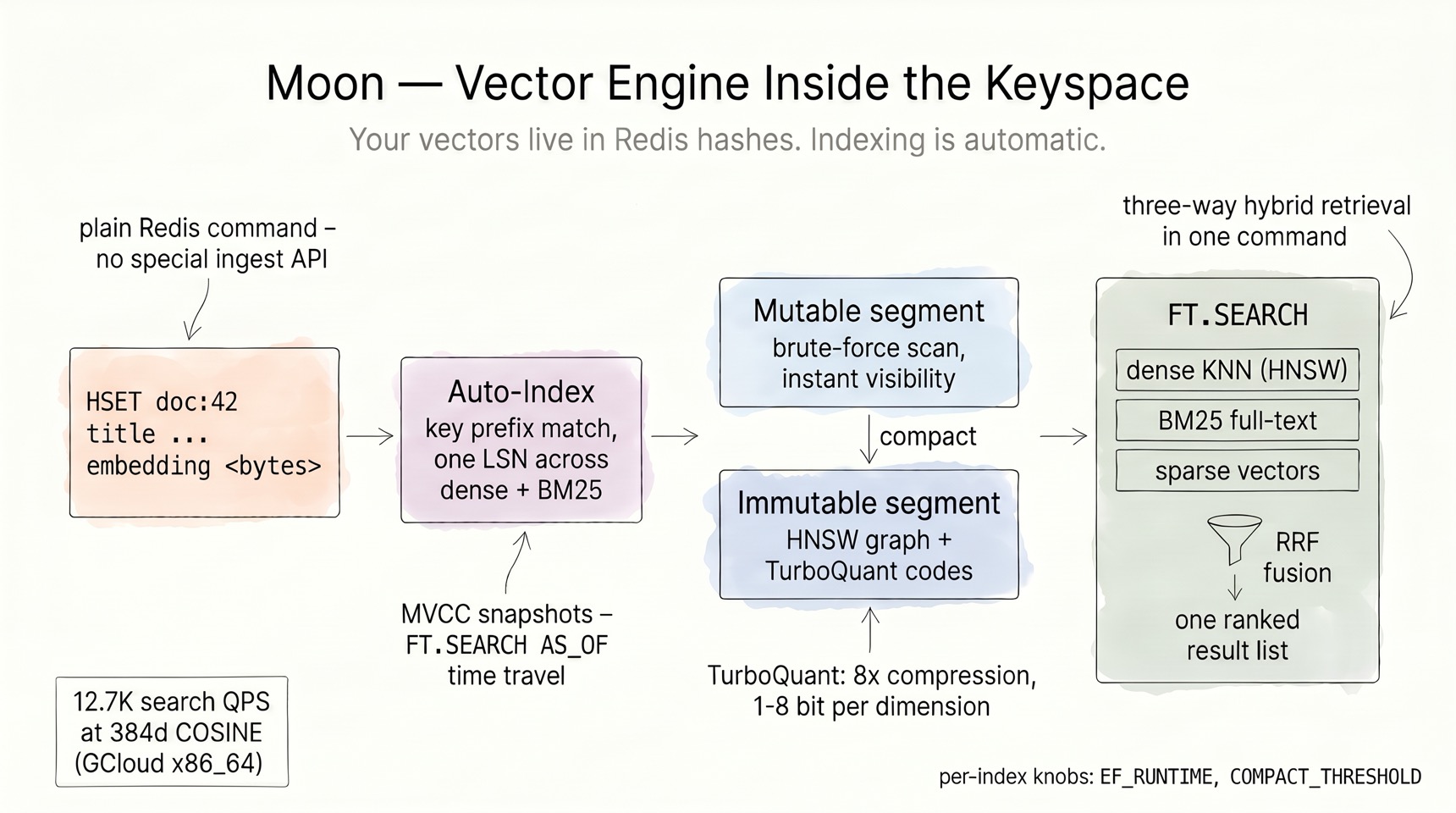

The vector engine lives inside the keyspace

Most vector databases make you run a second ingestion pipeline. In Moon, a vector is a field in a Redis hash, and indexing is a side effect of HSET:

Auto-indexing with transactional semantics. When an HSET key matches an index's prefix, Moon extracts the embedding (and text fields) and indexes them — allocating one monotonic LSN shared across the dense and BM25 paths, so MVCC snapshot isolation holds across both. FT.SEARCH AS_OF time-travels consistently; uncommitted TXN.* writes stay invisible until commit.

Segment lifecycle: fast writes, fast reads, no compromise. Fresh vectors land in a mutable segment (brute-force scanned — instantly visible, zero index-build latency). When the segment crosses COMPACT_THRESHOLD, it compacts into an immutable segment: an HNSW graph over TurboQuant-compressed codes. The HNSW build runs on a background worker pool — searches keep answering from the brute-force mutable segment while the graph builds, so compaction never stalls the shard. Reads merge both transparently. Immutable segments are never lossily re-encoded — a measured design decision (re-quantization collapses recall).

TurboQuant compression. Moon implements the TurboQuant algorithm (arXiv 2504.19874): normalize → pad → randomized fast Walsh-Hadamard transform → Lloyd-Max codebook → nibble-pack. 8× compression at ≤ 0.009 MSE for unit vectors, with 1–8 bit-per-dimension configurations, QJL-based residual correction, and a LUT-based ADC distance path. Pick SQ8 (per-vector affine scalar 8-bit) or FP32-HNSW for ≤ 384d workloads, TQ4 for 768d+ — the docs tell you which, instead of pretending one setting fits all.

Hybrid retrieval is native. One FT.SEARCH can fuse dense KNN, sparse vectors, and BM25 full-text with three-way weighted Reciprocal Rank Fusion — plus payload filters, multi-vector fields (up to 8 named vectors per index), and per-index EF_RUNTIME recall/latency tuning. Measured: 12.7K search QPS at 384d COSINE on GCloud x86_64 — while the same process serves your cache traffic.

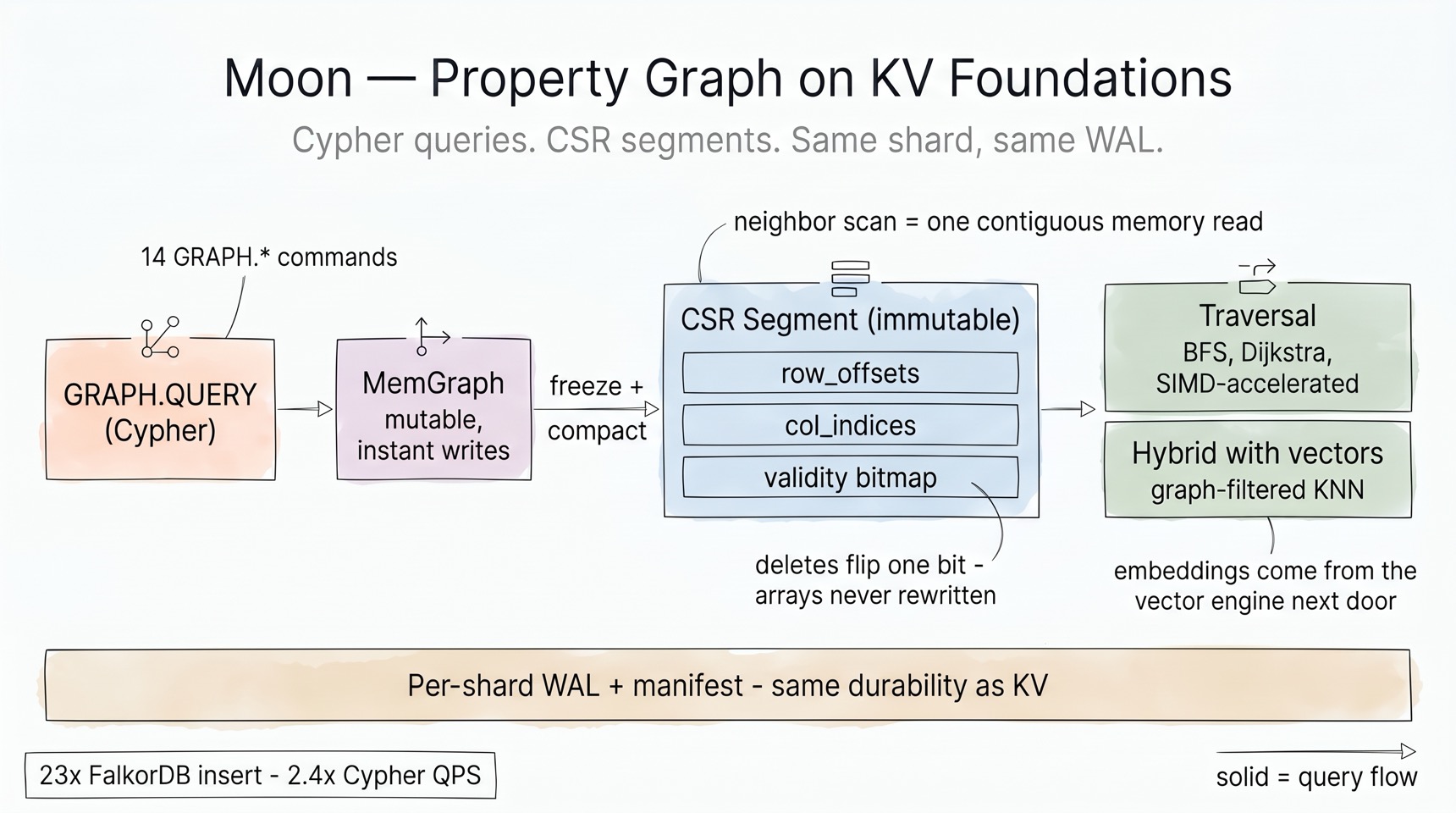

The graph engine: CSR speed on KV foundations

Moon's property graph follows the same recipe as the vector engine: a mutable front, an immutable compact back, per-shard ownership, WAL durability.

MemGraph → CSR segments. Writes go to a SlotMap-backed mutable graph with instant visibility. Compaction freezes it into a Compressed Sparse Row segment: neighbor iteration becomes one contiguous memory scan (col_indices[row_offsets[v] .. row_offsets[v+1]]) — the most cache-friendly layout known for graph traversal. Edge deletions flip a bit in a Roaring validity bitmap; the CSR arrays are never rewritten. Segments can be memory-mapped, so graphs larger than RAM stay queryable. Node lookup uses a minimal-perfect-hash index; labels and edge types get dedicated indexes.

Cypher + traversal toolkit. 14 GRAPH.* commands with a Cypher subset (MATCH, WHERE, parameterized queries, EXPLAIN/PROFILE), bounded BFS/DFS, Dijkstra with pluggable cost functions (including temporal-decay scoring for agent-memory use cases), and SIMD-accelerated traversal kernels with recursion-depth guards sized for worker stacks.

Durability is shared, not bolted on. The graph WAL, manifest, and recovery path reuse the persistence machinery — graph mutations replay on crash exactly like KV writes. Measured: 23× FalkorDB insert throughput, 2.4× Cypher QPS (see README benchmark methodology).

Hybrid graph + vector queries ship as four built-in patterns: graph-filtered vector search (traverse N hops, then KNN over candidates), vector-to-graph expansion (KNN, then expand context), vector-guided beam walk, and automatic strategy selection by candidate-set size. These exist because GraphStore and VectorStore are fields on the same shard — the hybrid module passes plain references, no RPC.

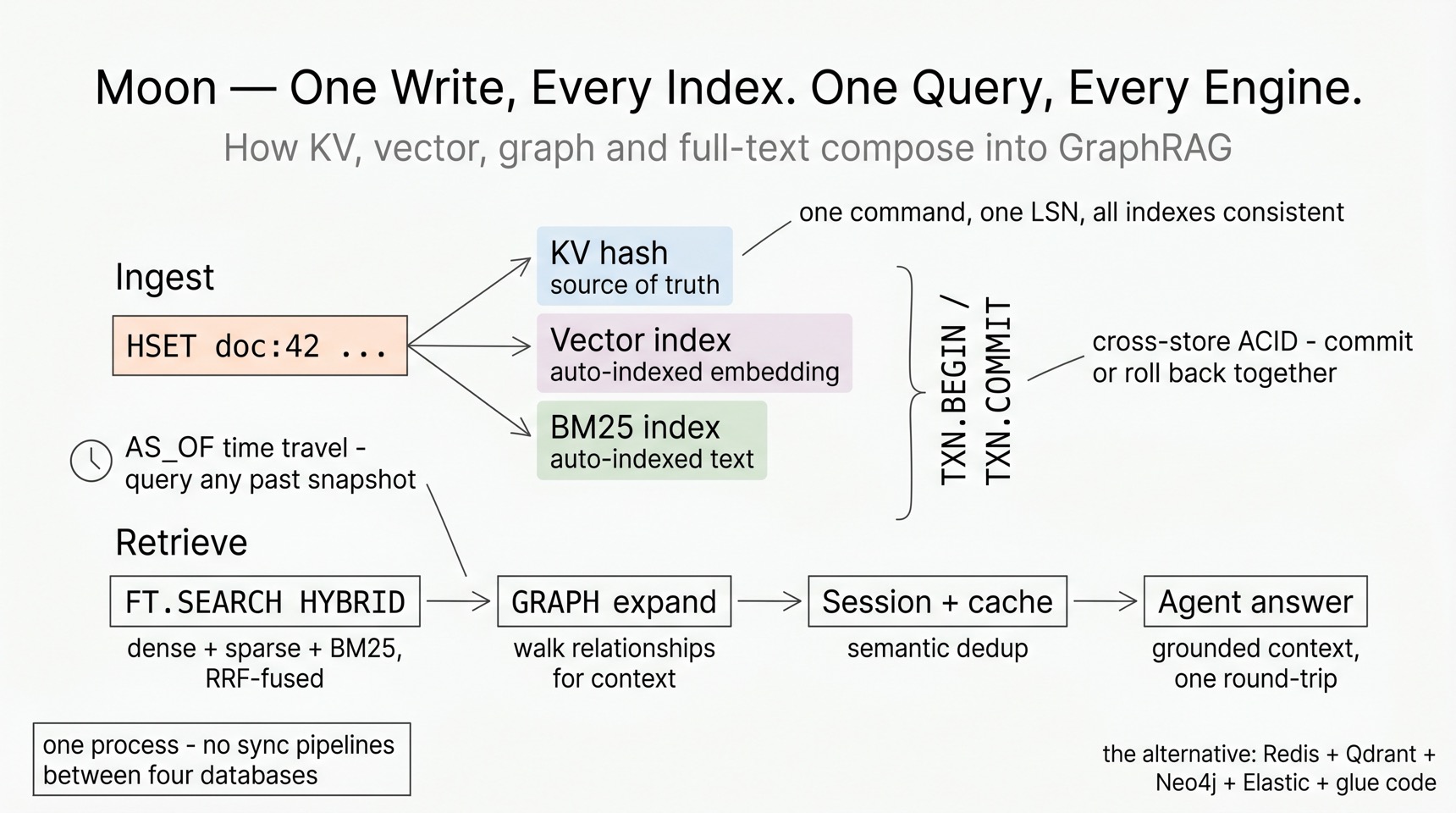

How it all composes: GraphRAG in one round-trip

Put the pieces together and the workflow that takes four databases plus glue code elsewhere becomes one connection:

1. Ingest: HSET doc:42 title "..." body "..." embedding <bytes> — the hash is your source of truth; the dense index and the BM25 index update automatically under one LSN.
2. Retrieve: FT.SEARCH ... HYBRID fuses dense + sparse + BM25 with RRF; EXPAND GRAPH / FT.EXPAND walks relationships for multi-hop context; FT.CACHESEARCH answers repeated questions from the semantic cache.
3. Trust: TXN.BEGIN … TXN.COMMIT gives cross-store ACID — KV, vector, and graph writes commit or roll back together via undo logs. FT.SEARCH AS_OF and GRAPH.QUERY VALID_AT query any past snapshot through the bi-temporal LSN registry.
4. Operate: workspaces give multi-tenant key isolation (hash-tag routed to one shard), durable MQ.* queues feed agent pipelines with at-least-once delivery and dead-letter queues, and the embedded web console ships in the same binary.

Every layer of this stack — the SIMD hash table, the per-shard WAL, the segment lifecycles, the LSN spine — exists so that the last section is possible. That's the design advantage: not four engines in one box, but one architecture that happens to speak four data models.

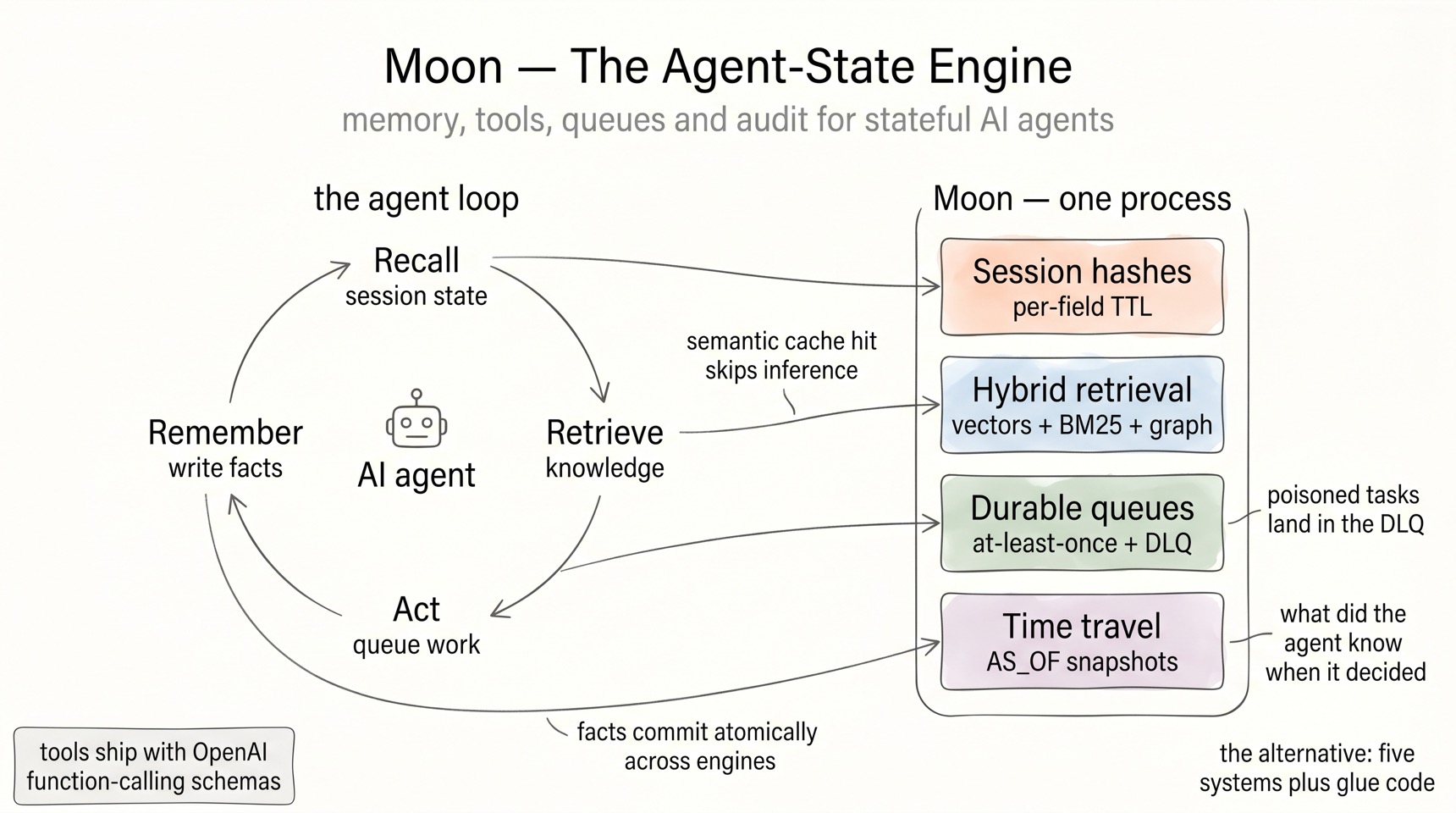

Built for the AI agent era

The agent era changes what a data layer is for. An agent is a stateful actor: it remembers across turns, calls tools, hands work to other agents, and has to answer for its decisions later. The standard answer is the same sprawl this page opened with — a session store, a vector DB, a graph DB, a queue, and glue code. Moon's position: agent state is one workload, and it belongs in one engine.

Positioned — every kind of agent memory, one shard. Each memory type maps to an engine that already shares the keyspace, the LSN spine, and the WAL:

Agent memory	Moon surface
Working memory (this conversation)	Redis hashes with per-field TTL (HEXPIRE family) — scratchpad fields expire individually
Semantic memory (what it knows)	auto-indexed vectors + BM25, hybrid FT.SEARCH
Relational memory (how things connect)	property graph, Cypher, hybrid graph + vector
Episodic record (what happened, when)	bi-temporal LSN registry — AS_OF / VALID_AT snapshots

Prepared — the agent surfaces ship today. None of this is roadmap:

• Tool calling, ready-made. examples/ai-agent-tools/ ships OpenAI-compatible function-calling schemas for four built-in tools: search (FT.SEARCH), navigate (FT.NAVIGATE), recommend (FT.RECOMMEND), and cache_lookup (FT.CACHESEARCH). Point an agent framework at Moon and it has tools.
• FT.NAVIGATE was designed for agents: KNN seeds → bounded BFS over the knowledge graph → combined re-rank with a per-hop penalty — so an agent reaches entities beyond direct vector matches in one command.
• FT.CACHESEARCH is a semantic-cache primitive: probe for a semantically similar past query (THRESHOLD), fall back to full KNN on miss. Cache entries are ordinary hashes, so TTL is just EXPIRE — repeated questions skip the expensive path.
• MQ.* durable queues feed multi-agent pipelines: consumer groups on streams, at-least-once delivery, a max-delivery count with automatic dead-letter queues, and debounced triggers. A poisoned task ends in the DLQ, not an infinite retry loop.
• Workspaces isolate agents and tenants: each workspace is a private namespace, hash-tag routed to one shard — a fleet of agents shares one server without sharing keys.
• TXN.* makes agent effects atomic across engines: remember the fact, embed it, and relate it in the graph — or none of it.

Applied — the agent loop, end to end:

1. Recall — read working memory from the session hash; stale scratchpad fields have already expired via per-field TTL.
2. Retrieve — FT.CACHESEARCH first (a semantic cache hit skips inference); on miss, hybrid FT.SEARCH or multi-hop FT.NAVIGATE for grounded context.
3. Act — MQ PUSH hands work to downstream agents with at-least-once delivery; failures land in the dead-letter queue for inspection instead of vanishing.
4. Remember — one TXN.* block: HSET the new fact (auto-indexed into dense + BM25 under one LSN) and a GRAPH.QUERY to relate it to what's already known.
5. Audit — later, FT.SEARCH ... AS_OF <t> replays the exact snapshot the agent saw: what did it know when it decided?

Working examples ship in the repo: RAG quickstart, semantic cache, GraphRAG, and agent tool-calling — plus moon_memory_engine.py, RAG + GraphRAG + session memory in ~80 lines of Python.
